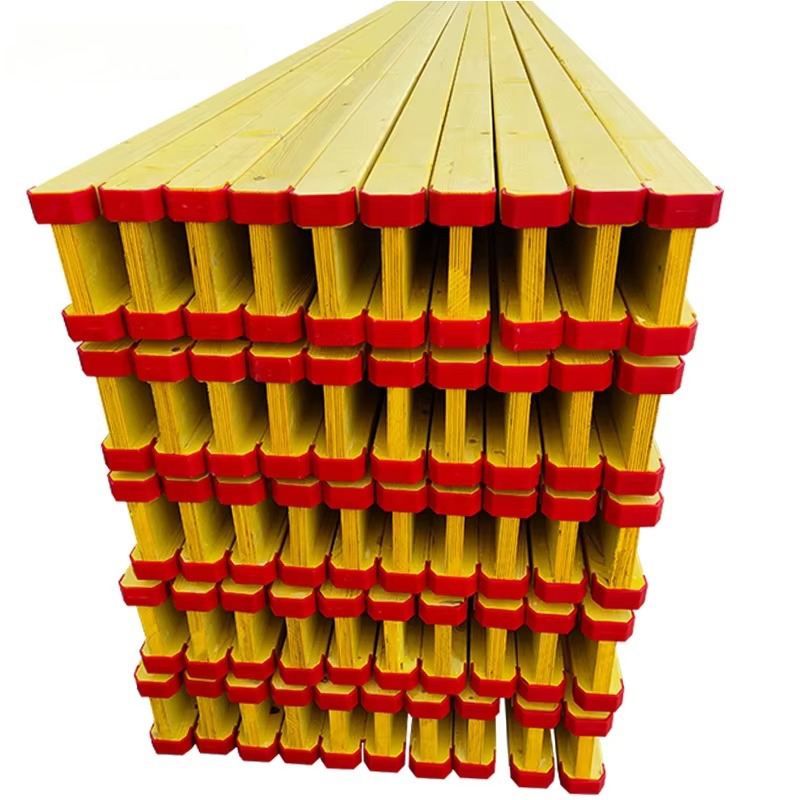

H20 timber formwork beam with red end protection

FORMWORK BEAM MANUFACTURER

H20 Timber Beam for Concrete Formwork

A lightweight, reusable timber I-beam manufactured for slab, wall and column formwork. Solid timber flanges and a high-strength plywood web are bonded with waterproof phenolic WBP glue, then protected with a yellow coating for demanding construction-site use.

Own ProductionOEM / Private LabelCustom Lengths

Send Inquiry Download Catalog

Available as an unbranded product or with customer logos, markings and packaging.

Factory ProductionManufactured by Taihe for project supply and distributor orders.

Flexible MaterialsPine or spruce flanges with a plywood web.

Custom End ColorsRed, blue and green end protection options are available.

Export PackingBundled and palletized according to beam length and order requirements.

BUILT FOR FORMWORK

Key Features

200 mm standard beam depth for common formwork systems

Waterproof phenolic WBP glue and protective yellow coating

Lightweight I-beam profile for efficient site handling

Standard and project-specific lengths from 1.8 to 5.9 m

Red, blue or green end protection options

White-label supply with customer branding available

Technical Specifications

Product	H20 Timber Beam
Beam Profile	H-shaped timber formwork beam
Beam Height	200 mm or customized
Flange Size	80 × 40 mm or customized
Flange Material	Pine, spruce or customized timber
Web Material	High-strength plywood
Web Thickness	27 mm
Adhesive	Waterproof phenolic WBP glue
Available Lengths	1.8–5.9 m; common lengths include 1.8, 2.9, 3.0, 3.3, 3.9, 4.9 and 5.9 m
Approx. Weight	4.5–5.0 kg/m, depending on material and configuration
Surface	Yellow protective coating
End Options	Red, blue or green; customized colors available
Branding	Unbranded, OEM and private-label supply
Packing	Bundled and palletized according to length and order requirements

PRODUCT CONSTRUCTION

Dimensions and Materials

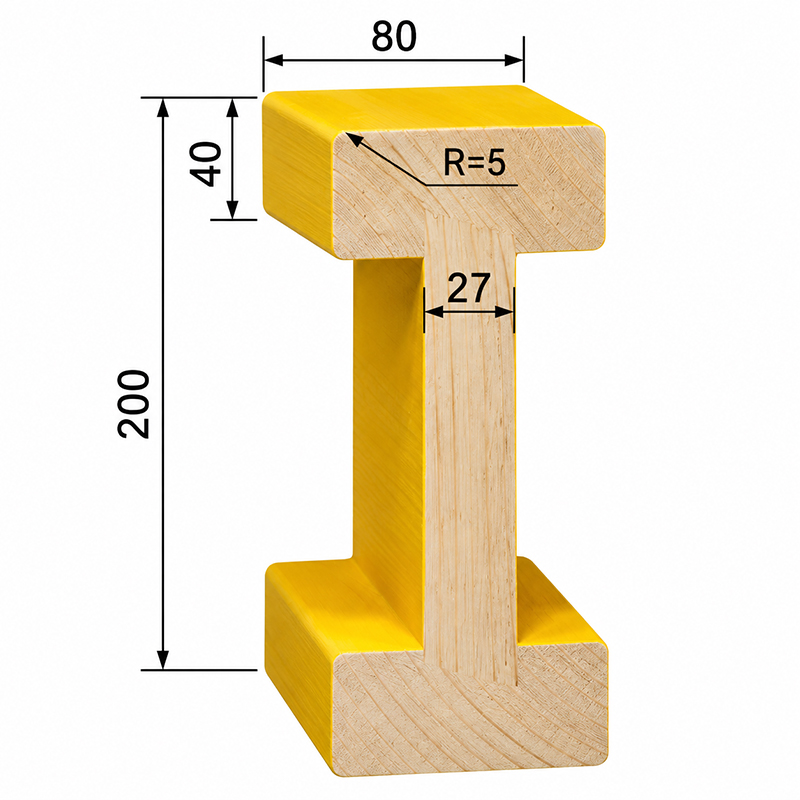

H20 timber beam cross-section showing 200 mm height, 80 mm flange width, 40 mm flange depth and 27 mm plywood web

The 200 mm I-beam section combines timber flanges with a plywood web. Waterproof phenolic WBP glue bonds the structure, while the yellow coating helps protect the wood surface during storage, transport and repeated formwork use.

Standard 200 × 80 mm profile
40 mm flange depth
27 mm plywood web
Material and dimensions can be adapted for project orders

Formwork Applications

Slab Formwork

Used as primary or secondary beams with steel props, U-heads and formwork panels.

Wall Formwork

Suitable for timber-beam wall formwork assemblies and concrete wall formwork layouts.

Column Formwork

A practical beam component for adjustable and column formwork arrangements.

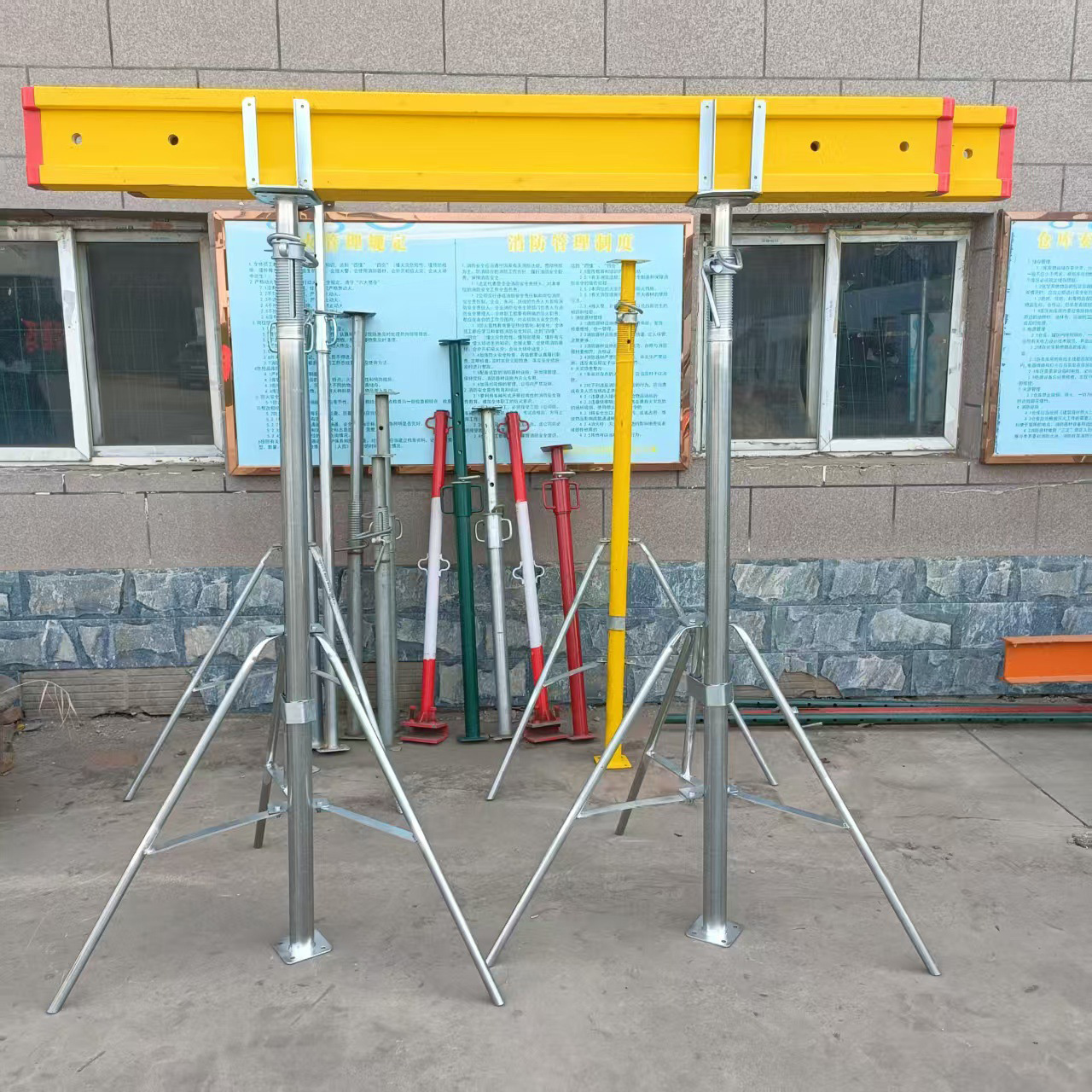

H20 timber beam supported by adjustable steel props and U-heads — Compatible with adjustable steel props and U-head support arrangements.

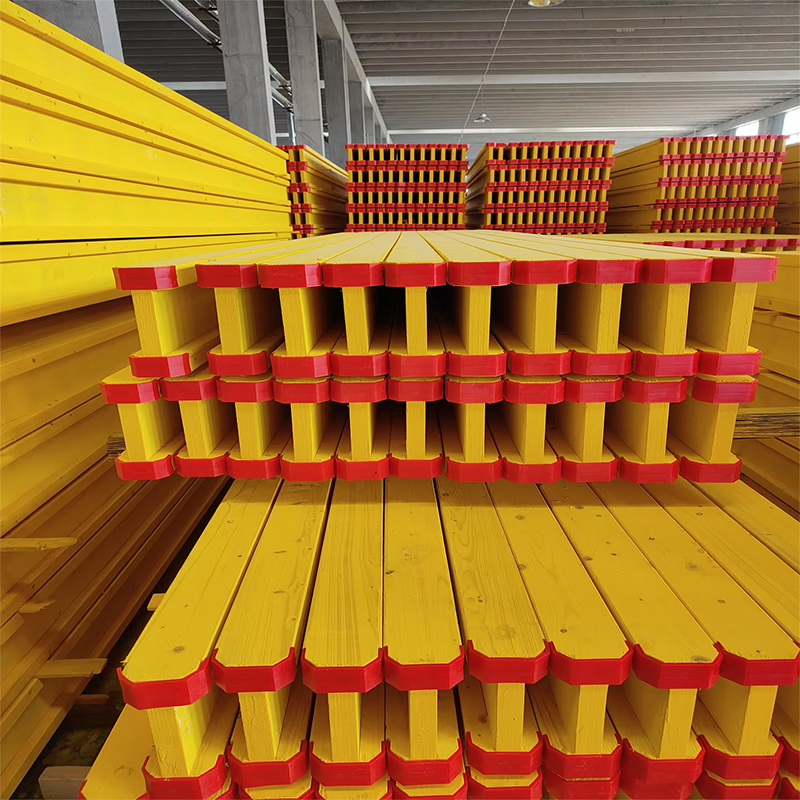

Factory stock of yellow H20 timber beams with red end protection — Factory production for construction projects, distributors and private-label orders.

BUYER QUESTIONS

H20 Timber Beam FAQ

What is an H20 timber beam used for?

It is used as a primary or secondary beam in slab, wall and column concrete formwork systems. It works with formwork panels, steel props, U-heads and other supporting components.

What lengths are available?

Standard and project-specific lengths from 1.8 to 5.9 m are available. Common lengths include 1.8, 2.9, 3.0, 3.3, 3.9, 4.9 and 5.9 m.

What materials are used in the beam?

The beam uses pine, spruce or customized timber flanges, a high-strength plywood web and waterproof phenolic WBP glue.

Is the H20 timber beam waterproof?

WBP glue and a yellow protective coating improve resistance to moisture during formwork use, transport and storage. The beams should still be stored off the ground and protected from prolonged exposure.

Can the end color and branding be customized?

Yes. Red, blue and green end options are available, together with customer logos, markings and private-label packaging.

How are H20 timber beams packed?

The beams are bundled and palletized for export. The quantity per bundle is arranged according to beam length and order requirements.

OEM and Customization

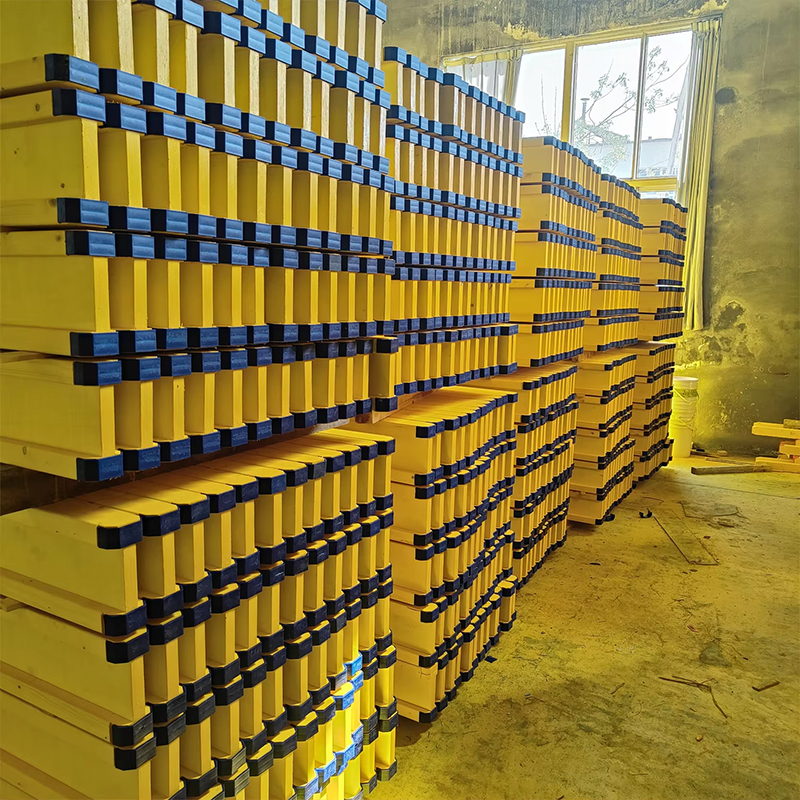

H20 timber beams with blue end caps in factory storage — End colors can be matched to customer or market requirements.

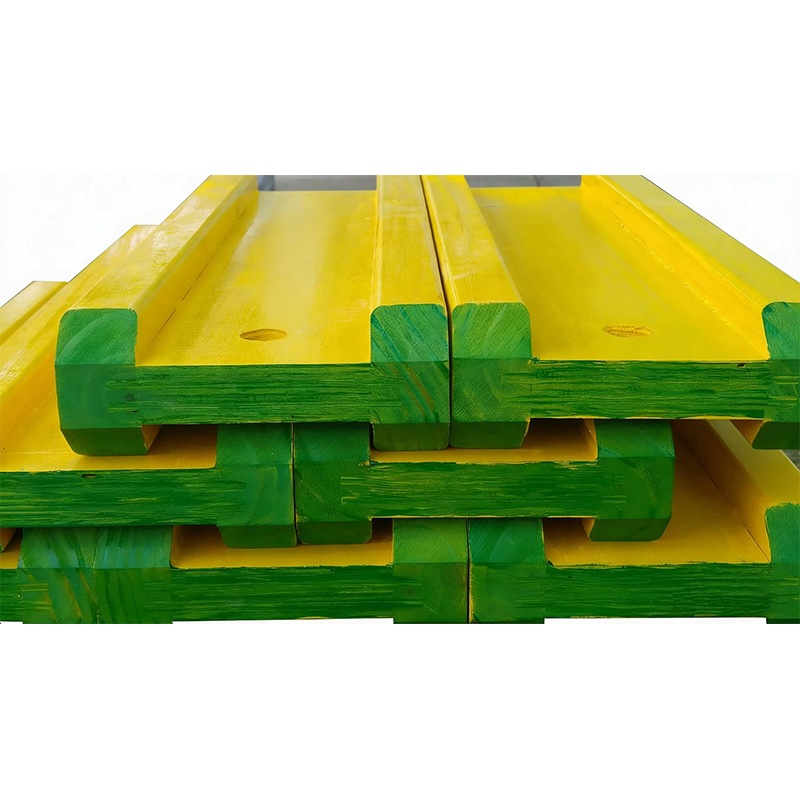

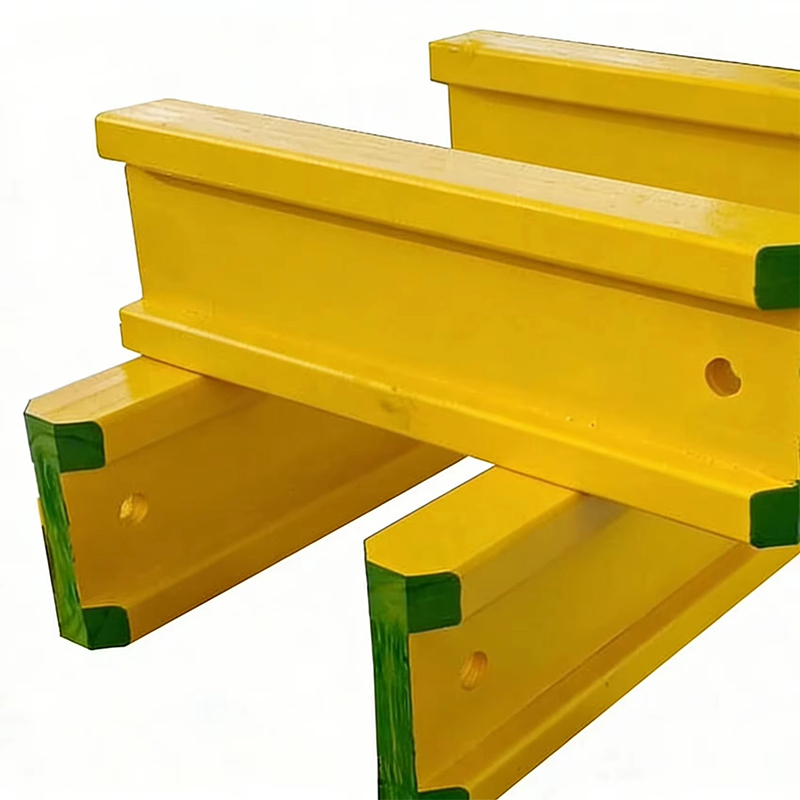

H20 timber beams showing green ends and optional system holes — Lengths, markings, colors, system holes and packing can be discussed for project orders.

Customer logo and private-label markings
Red, blue, green or customized end colors
Standard or customized beam lengths
Export bundles and pallet packing

Request H20 Timber Beam Specifications

Tell us the required beam lengths, quantity, end color, branding and destination. Our team will confirm the available configuration and export packing.
