Factory Direct Formwork Accessory
Formwork Tie Rod for Concrete Formwork Systems
Taihe supplies formwork tie rods for securing opposing concrete formwork panels during casting. The threaded tie rod works with wing nuts, anchor nuts, plates and other formwork accessories to maintain panel spacing and resist concrete pressure. D15 and D17 options, custom cutting and multiple surface finishes are available for distributors, contractors and formwork system suppliers.
D15 / D17 OptionsCustom Length AvailableMatching Nuts & AccessoriesOEM / Bulk Supply
Product Overview
Formwork Tie Rod for Wall and Column Formwork
A formwork tie rod is a threaded steel bar used to connect and secure opposite formwork panels during concrete pouring. The rod passes through the formwork assembly and is tightened from both sides using wing nuts, anchor nuts or bearing plates.
Taihe supplies tie rods as individual components or as part of a complete formwork tie rod system. Buyers can order standard lengths or request cut-to-length supply according to wall thickness and project requirements.
Formwork Tie Rod Features
Continuous Thread
Threaded profile allows nut positioning along the rod for flexible formwork spacing.
D15 / D17 Options
Common tie rod diameters for concrete formwork applications.
Custom Length
Tie rods can be supplied in standard lengths or cut according to project requirements.
Multiple Finishes
Available finish options include self-color, electro-galvanized and hot-dip galvanized where supported by current product data.
Matching Accessories
Compatible system components include wing nuts, anchor nuts, plates, couplers and related formwork accessories.
Bulk Export Supply
Suitable for distributors, contractors and project procurement.
Formwork Tie Rod Specifications
| Product | Formwork Tie Rod / Dywidag Tie Rod |
|---|---|
| Material | Q235 |
| Diameter | D15 / D17 |
| Weight | 1.45 kg/m |
| Thread Pitch | 6.35 mm / 10 mm |
| Standard Length | 6 m |
| Custom Length | Available |
| Surface | Self Color / Electro Galvanized / Hot Dip Galvanized |
| Matching Parts | Wing Nut / Anchor Nut / Hex Coupler / Super Plate |
| OEM | Available |
Formwork Tie Rod Applications
Concrete Wall Formwork
Used to maintain spacing between opposite wall formwork panels during concrete casting.
Column Formwork
Suitable for formwork assemblies where tie rods are required to secure opposing panels.
Steel Formwork Systems
Works with steel formwork panels, walers and compatible tie accessories.
Construction Formwork Projects
Suitable for contractors, distributors and formwork system suppliers requiring replaceable tie components.
How a Formwork Tie Rod Works
- Tie rod passes through opposing formwork panels.
- Spacer or PVC tube may define the wall thickness where used.
- Wing nuts or anchor nuts are fitted on both ends.
- Nuts are tightened against plates or walers.
- The assembly holds the formwork in position during concrete placement.
- Depending on the system, the rod may be removed and reused after stripping.
Matching Formwork Tie Rod Accessories
Formwork Tie Rod System
Complete system covering rods, nuts and accessories.
Formwork Accessories
Category hub for concrete formwork components.
Steel Formwork
Steel panels and related formwork systems.
Wing Nut
System accessory; confirm thread specification before ordering.
Anchor Nut / Super Plate
System accessories for bearing and load distribution.
Hex Coupler
System accessory for joining compatible tie rods.
How to Choose a Formwork Tie Rod
- Diameter: Confirm the tie rod size required by the existing nuts and accessories.
- Length: Choose the rod length according to wall thickness and the formwork assembly.
- Surface Finish: Select the finish according to storage conditions, transportation and project environment.
- Matching Nuts: Confirm that wing nuts, anchor nuts and couplers match the rod thread.
- Order Quantity: For bulk orders, confirm quantity, required cut lengths, finish and packing before quotation.
Packing & Export Supply
Tie rods are bundled securely for handling and export shipment. Packing can be adjusted according to rod length, order quantity and buyer requirements. Matching nuts and accessories can be packed separately for easier inventory and project distribution.
Formwork Tie Rod FAQ
What sizes of formwork tie rods do you supply?
Current product data confirms D15 and D17 options. Custom requirements can be discussed with the quotation team.
Can the tie rod length be customized?
Yes. Cut-to-length supply is available based on the project requirements confirmed before quotation.
Which nuts work with the tie rod?
Compatible components include wing nuts, anchor nuts and couplers. Confirm the thread specification before ordering.
What surface finishes are available?
Current product data confirms self color, electro-galvanized and hot-dip galvanized options.
Can I order the complete tie rod system?
Yes. See the complete formwork tie rod system page for rods, nuts and accessories.
What information should I send for a quotation?
Please send the diameter, length, quantity, surface finish, matching accessories and destination port.
Send Your Tie Rod Specifications
Share your diameter, length, quantity, finish and matching accessory requirements for a project quotation.
COMPLETE YOUR FORMWORK SYSTEM
Related Products
Formwork Tie Rod System
Complete tie rod system with rods, nuts and compatible formwork accessories.
View Tie Rod System
Formwork Clamps
Formwork clamps for securing compatible concrete formwork assemblies.
View Formwork Clamps.jpg)

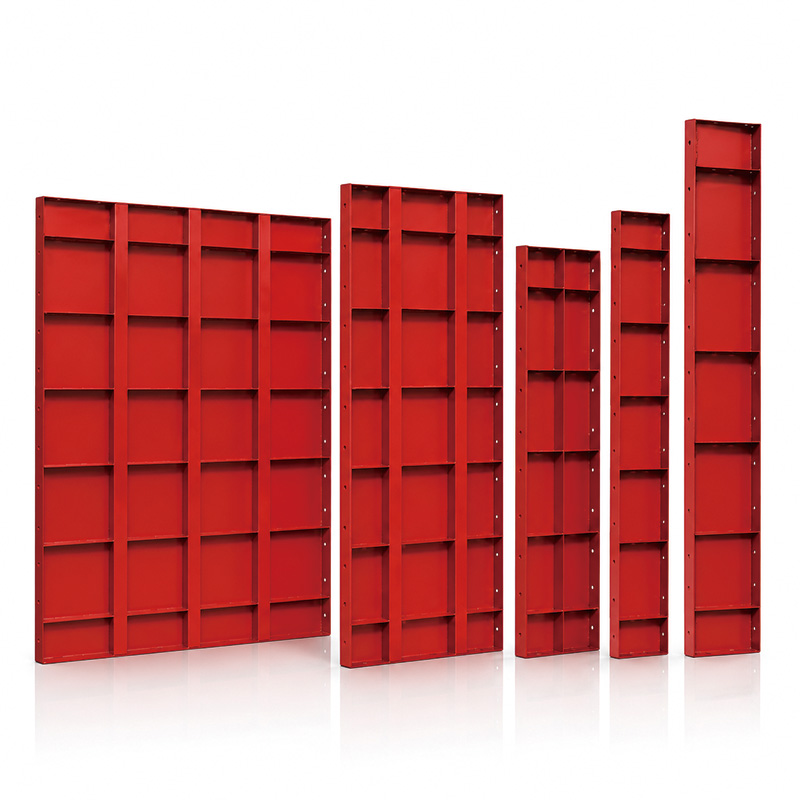

Steel Flat Panel Formwork
